3037 Series w Plastic Strain Relief
D-Sub IDC Type All Plastic; for flat ribbon cable

Materials:
Contact: Phosphor Bronze
Contact Plating: 0.000127mm [0.000005"] Gold
Contact Underplating: 0.00254mm [0.000100"] min. Nickel
Insulation: PBT & 30% glass fiber reinforced thermo plastic: UL94V-O
Color: Blue

Alternative: 3047, 3027, 3007 Series.
Recommended Cable: 1.27mm ctr. Ribbon Cable 26 or 28 AWG; FC Series

Electrical:
Contact Current Rating: 1.4 Amp (26AWG); 1 Amp (28 AWG)
Contact resistance: 10 Miliohms Max.
Insulation Resistance: 1000 Megohms @ 1000V AC
Dielectric Withstanding: 1000V AC min. rms
Operation Temperature: -55oC to +105oC
RoHs
Ordering Part Number
Shell
Size		 No. of
Position		 Plug (M) /
Recept (F)		 Part Number
E 9 Plug (M) 3037-01
Recept (F) 3037-11
A 15 Plug (M) 3037-02
Recept (F) 3037-12
B 25 Plug (M) 3037-05
Recept (F) 3037-15
C 37 Plug (M) 3037-06
Recept (F) 3037-16
* Also Available (Contact Ho Chien for more information):
- Contact gold plating upgrade. **
- Custom length of contact leads. **
- All connectors can be customly altered to fit your needs. **
** minimum orders and/or tooling charges may apply

Ordering Part Number
3037 - [] []
 [] []
Series Number Contact Type No. of Contact
 Contact Plating Color

0: Male
1: Female		 1:    9 Pos.
2:  15 Pos.
5:  25 Pos.
6:  37 Pos.		 Blank: Selected Gold
F: 0.000010" Gold
E: 0.000015" Gold
D: 0.000030" Gold		 Blank: Blue
BK: Black

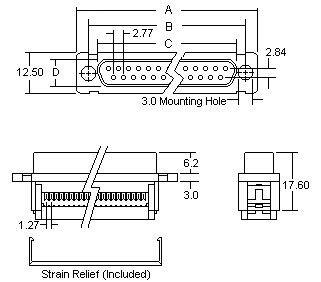

Mechanical Specification
Dimension (mm)
Shell
Size		 No.
Pos.		 Plug (M) /
Recept (F)		 A B C D
E 9 Plug (M) 30.81 24.88 16.92 8.36
Recept (F) 16.33 7.90
A 15 Plug (M) 39.14 33.32 25.25 8.36
Recept (F) 24.66 7.90
B 25 Plug (M) 53.04 47.04 38.96 8.36
Recept (F) 38.38 7.90
C 37 Plug (M) 69.32 63.50 55.42 8.36
Recept (F) 54.84 7.90
