2600 Series (Old PN#2554HE Series)
0.100" Single Row PCB Socket Strip
[ Side Entry ]

Material:

Contact: Phosphor Bronze
Contact Plating: Gold or Tin over 0.000100" Nickel Underplating
Insulator: PBT & 30% glass fiber reinforced thermo plastic; rated UL94V-O
Insulator Color: Black
Mating Connectors: 2544 , 2545 Series

Electrical:

Current Rating: 3 Amp Max.
Contact Resistance: 30 Milliohms. Max.
Insulation Resistance: 1000 Megohms Min. DC 500V
Dielectric Strength: 500V AC
Operation Temperature: -55^oC to +105^oC

Ordering Part Number

2600 -	1 X	[][]	[]	- HE
Series Number	Number of Rows	Number of Positions	Contact Plating	Series Number
		[ 1 thru 40 pins ]	T:0.000150" Tin G: 0.000005" Gold F: 0.0 00010" Gold E: 0.000015" Gold D: 0.000030" Gold

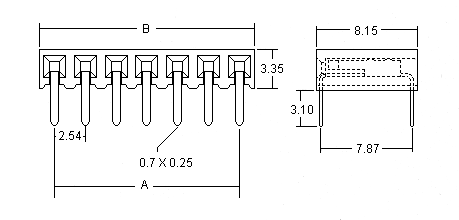

Dimensions (mm)

A [ 2.54 x No. of Pos. ] - 2.54

B 2.54 x No. of Pos.

Dimensions (mm)
A	[ 2.54 x No. of Pos. ] - 2.54
B	2.54 x No. of Pos.
