Ho Chien Enterprise Co., Ltd.

2545 Series
0.100" Ctr Un-shrouded Header Strip; Single Row
[ Right Angle ]

SMT type : 2545S series

Material:

Contact: Phosphor Bronze
Contact Plating: Gold or Tin over 0.000100" Nickel Underplating
Insulator:?/font>PBT & 30% glass fiber reinforced thermo plastic; rated UL94V-O
Insulator Color: Black
Mini Jumper: 2546 Series

Electrical:

Current Rating: 3 Amp Max.
Contact Resistance: 20 Milliohms. Max.
Insulation Resistance: 5000 Megohms Min. DC 500V
Dielectric Strength: 1000V AC
Operation Temperature: -55^oC to +140^oC

Ordering Part Number

2545B -	1 x	-[][]	[]
Series Number	Number of Rows	Number of Positions Per Row	Contact Plating

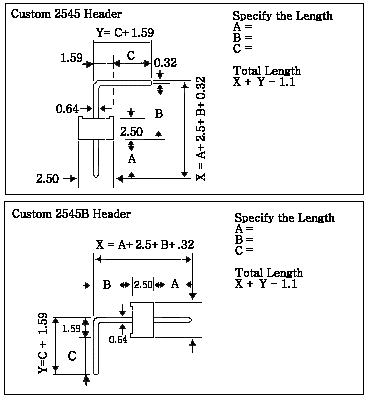

2545: Version I 2545B: Version II		[ 1 thru 40 pins ]	T: 150u" Tin G: 5u" Gold F: 10u" Gold E: 15u" Gold D: 30u" Gold	Specify the A &?B distance If length is not same to standard. 10u"/15u"/30u" 40K pin MOQ

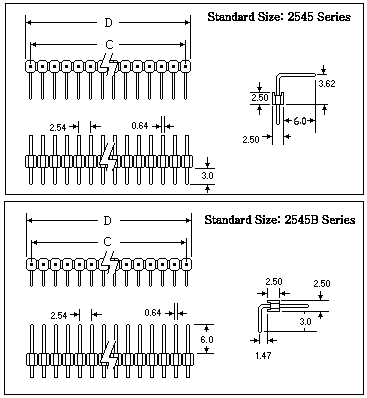

Dimensions (mm)
C	[ 2.54 x No. of Pos. ] - 2.54
D	2.54 x No. of Pos.
