4002 Series
0.100" DIN 41612 Socket Straight PCB Mount

Material:
Contact: Phosphor Bronze
Contact Plating: Gold over 0.000100" Nickel Underplating
Solder Tail Plating: 0.000150" Tin over 0.000100" Nickel Underplating
Insulator: PBT & 30% glass fiber reinforced thermo plastic; rated UL94V-O

Electrical:
Current Rating: 5 Amp Max.
Contact Resistance: 20 Milliohms. Max.
Insulation Resistance: 1000 Megohms Min. DC 500V
Dielectric Strength: 1000V AC
Operation Temperature: -25oC to +105oC
Ordering Part Numbers
Mounting Option

No. of
Positions

No. of
Contacts

Rows with
Contacts

Part Number
PCB Dip

Part Number
Press Fit

Contact Plating
96 96 a b c 4002-3396T 4002-3396P
96 64 a & c 4002-3264T 4002-3264P
48 48 a b c 4002-3348T 4002-3348P
48 32 a & c 4002-3232T 4002-3232P
64 64 a b 4002-2264T 4002-2264P
64 32 a 4002-2132T 4002-2132P
32 32 a b 4002-2132T 4002-2132P
32 16 a 4002-2116T 4002-2116P

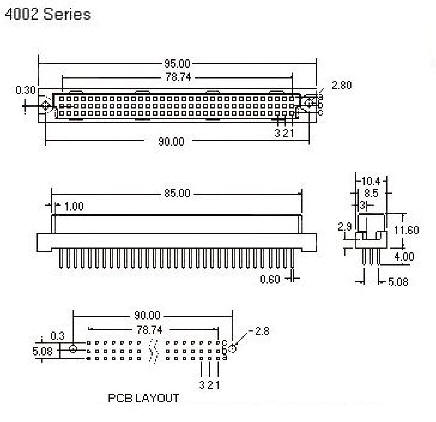

4002-3396T

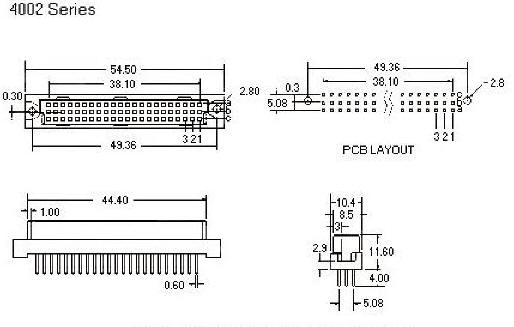

4002-3348P

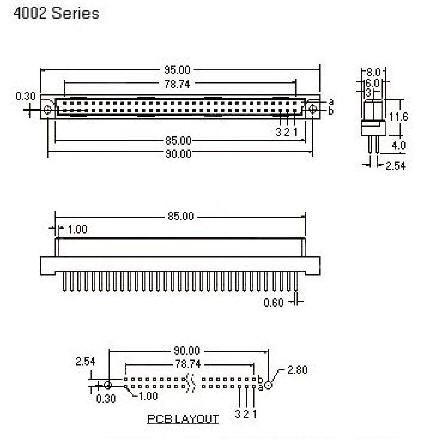

4002-2264T
4002-2132T
