2542 Series
0.100" x 0.100"Ctr Un-shrouded Header Strip; Dual Row

Material:
Contact: Phosphor Bronze
Contact Plating: Gold or Tin over 0.000100" Nickel Underplating
Insulator: PBT & 30% glass fiber reinforced thermo plastic; rated UL94V-O
Insulator Color: Black
Mini Jumper: 2546 Series

Drawing: 2542

Electrical:
Current Rating: 3 Amp Max.
Contact Resistance: 20 Milliohms. Max.
Insulation Resistance: 5000 Megohms Min. DC 500V
Dielectric Strength: 1000V AC
Operation Temperature: -55^oC to +140^oC

Ordering Part Number

2542-	2 x	-[][]	[]	-[]	-[][]
Series Number	Number of Rows	Number of Positions	Contact Plating	Contact Style
		[ 1 thru 40 pins ]	T: 150u" Tin G: 5u" Gold F: 10u" Gold E: 15u" Gold D: 30u" Gold	Blanket: Straight Lead, PBT & 30% glass fiberK: Kinked Lead (Kink on both end only) Min. qty requested. N6: High Temperature Insulator	Spedify the A, B, C length if not same to standard. 13.6 : A:13.6mm, B: 3.0mm, C: 8.10mm

General 2 row header

Kink Lead (both end 4 contact only)

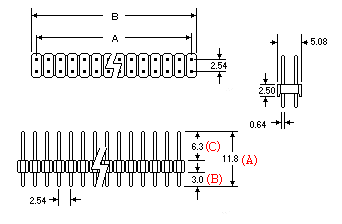

Dimensions (mm)
A	[ 2.54 x No. of Pos. ] - 2.54
B	2.54 x No. of Pos.
