Ho Chien Enterprise Co., Ltd.

2202 Series
0.05" x 0.05" Dual Row PCB Socket Strip

Material:
Contact: Phosphor Bronze
Contact Plating: Gold or Tin over 0.000100" Nickel Underplating
Insulator: N6 High Temperature for SMT
Insulator Color: Black

Electrical:
Current Rating: 3 Amp Max.
Contact Resistance: 30 Milliohms. Max.
Insulation Resistance: 1000 Megohms Min. DC 500V
Dielectric Strength: 500V AC
Operation Temperature: -55^oC to +105^oC

Drawing : 2202 (pdf)

RoHs

Ordering Part Number

Standard Pitch 1.27 x 1.27mm
2202 -	1 X 2 X	[][]	[]	- []	- []
Series Number	1: 1 Rows 2: 2 Rows	Number of Positions Per Row	Contact Plating	Type	Mounting Option
		[ 2 thru 50 pins ]	Blanket: 5u" Gold GT: Selected Gold T: Tin	S: Straight R: Srright angle M: SMT	A: w Peg (2 row only) B: w/o Peg (2 row only)

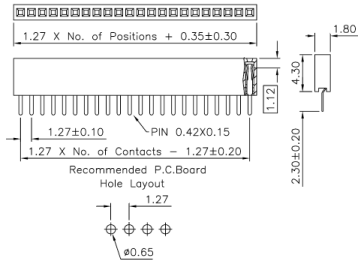

2202-1 Straight Type

2202-1 SMT type

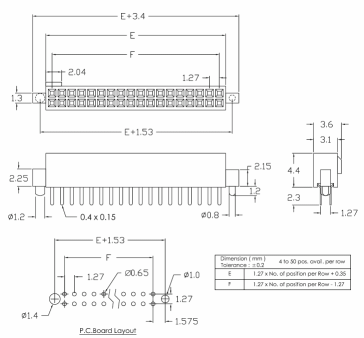

2202-2 w Peg Straight Type

2202-2 w Peg SMT type
